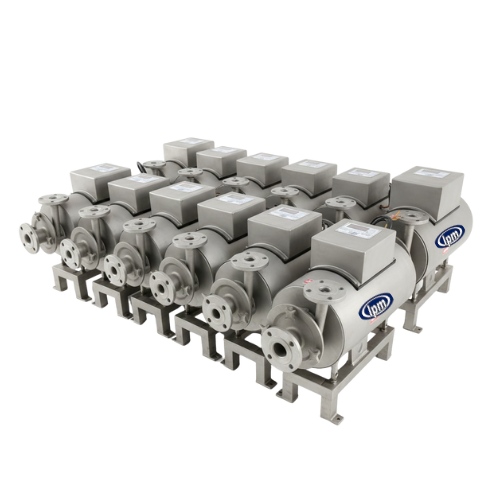

Centrifugal Gear / Lobe Pump / Transfer Pump

• Leela Pharma Machineries  pumps are designed for flooded suction and low NPSHa.
• For initial start up pump & suction line to be filled with liquid (water).
• Once primed, the pumps are able to lift liquid from a lower level, provided liquid is retained in the pump and suction line.
• Leela Pharma Machineries pumps reliability are achieved by using investment cast, solid, forged stainless steel components.
• Open impellers are used to ensure through cleaning and prevent clogging.
• Pump housing and suction cover are also available with heating & cooling jackets.
• Leela Pharma Machineries  Mechanical . Seals are suitable for hygienic conditions and easily replaceable.
• Identify Leela Pharma Machineries Pumps with Custom make &  Sr. No., & year of manufacturing in the label.
• Products with high temperature must have sufficient suction pressure to prevent evaporation at the pump inlet.
• All parts coming into contact with the product are made of quality stainless steel.
• The customer must examine whether pump material & seal are suitable for new product, particularly when changing from one product to another. Or contact us with details.
• No guarantee can be given for products that attack stainless steel.
• When in doubt, please contact us with product name, temperature, concentrate, etc.



Before Starting the Pump clean the suction line and impeller housing area by opening the suction cover any foreign materials such as weld slugs, should be removed

Check for free impeller rotation manually/pump turn freely under hand pressure.

After ensuring the impeller housing area, mechanical seal area are free from foreign material

Confirm free access of water/liquid in the suction side of the pump. Valve on discharge line is closed during start up and it should be opened subsequently as soon as pump started.

For pumps with double mech. Seal & flushed shaft seal, check the cooling water/liquid supply & flow is adequate.

Never run the pump dry/without liquid.

Check the pump for proper rotation as indicated on the pump. When checking direction of rotation, the pump should be filled with the liquid, and take note of abnormal/special sound.
