Description

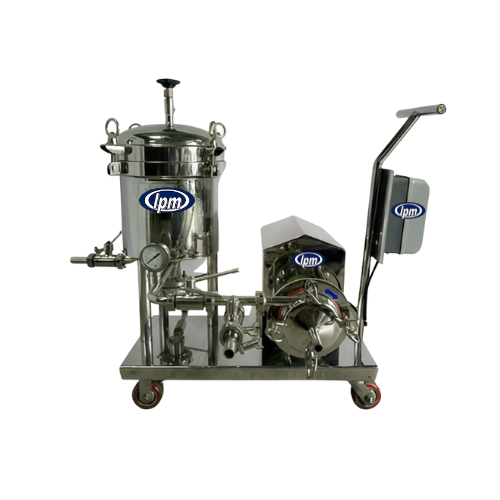

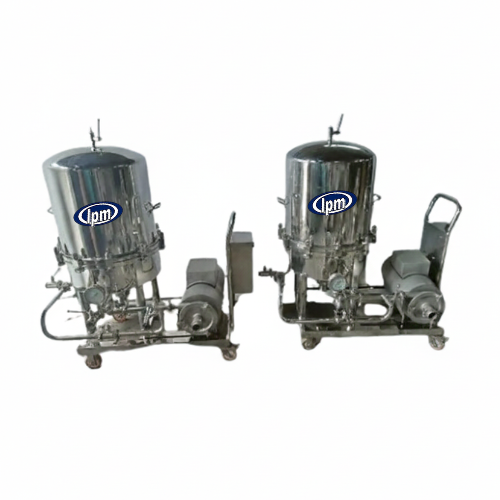

What is a Zero Hold up Filter Press?
Zero Hold up Filter Press is used for achieving clear filtration quality for high value liquids. Meeting GMP & FDA norms, Zero Hold up Filter Press can be made available with support of different pumps like Centrifugal, Gear, Lobe and Roto as per the specific process application demands. Further, the cartridge assembly comprises perforated screens, plates, spacers as well as fitter media to provide for optimum process support.
The Zero Hold up Filter Press is used for achieving clear filtration quality for high-value liquids. The press has the cake filter aid and solids enclosed which conveniently allows the filtration of toxic, hazardous, and explosive liquids. It has a dome structure that enables quick removal of the cartridge assembly and cleaning of the cake. The plates are flexible enough to be increased as the toxic levels of input increase. It features high due to its substantial flow rate and quality output. Since there is a reverse flow of liquid there is Zero Hold up Filter Press in the filter press that helps in the complete filtration of the batch. Zero Hold up Filter Press is most suited for filtration of products in the chemical, distillery, beverage, ink, oil, and other allied industries. It provides a single pass clarity, a uniform distribution of cake on each plate, and the cake can easily be dried by air and nitrogen.

We offer Zero Hold Up Filter Press to our clients.
Additional Information:
Production Capacity: 100 to 10000 ltrs/ hr
Delivery Time: depend upon qantity , size
ZERO HOLD UP FILTER PRESS SPECIAL FEATURES:

Comes with interlocking spacers
Unfiltered liquid centrally fed under pressure through bottom inlet that allows liquid to evenly spread on each plate that comes fitted with filter media
Meets GMP & FDA norms Provides full batch recovery where no separate scavenging system is required.
Provides full batch recovery where no separate scavenging system is required
Provides for optimum sealing support that allows filtration of volatile, toxic as well as inflammable products
Can be used with any type of filtering media including as single or in combination to achieve required micron efficiency

APPLICATIONS OF ZERO HOLD UP FILTER PRESS:
Zero Hold up Filter Press can be built in a wide range of sizes, from small 400 to 15000 liters Zero Hold up Filter Press, to those with much larger capacities. Zero Hold up Filter Press are used for liquid/solid separation in an extensive range of industries and applications including:
Pharmaceutical Industries
Chemical Industries
Food Processing Industries
Oil Industries
Distillation Plants
Beverages like Liquid Filter, Wine Filter and many more

TECHNICAL SPECIFICATION OF ZERO HOLD UP FILTER PRESS

Model
Diameter of Plate
No. of Plates
Filtering Area m2
Cake Holding Capacity (Litres)
Capacity
(Litres/hour)
Leela-86
8”
6
0.198
4.50
400
Leela-88
8”
8
0.254
5.78
500
Leela-148
14”
8
0.756
27.00
1500
Leela-1410
14”
10
0.924
35.00
1800
Leela-188
18”D
8
1.270
51.00
2500
Leela-1815
18”S
15
2.270
44.00
4500
Leela-1812
18”D
12
1.840
78.00
3700
Leela-1823
18”S
23
3.400
65.00
6800
Leela-2412
24”D
12
3.430
148.00
6700
Leela-2423
24”S
23
6.336
120.00
12600
Leela-337
33”D
7
4.000
175.00
8000
Leela-3314
33”S
14
7.500
210.00
15000
